Paper sheeter

CL165

The CL Sheeter is the optimal solution for converting or printing plants that require high production and the best sheeting quality for an affordable price.

This sheeter allows a quick return of investment thanks to its high technological capabilities and high-speed production. It is a modular machine that can be installed in few days.

Request information

More information available by calling:+34 943 69 84 25

Download file

Basic configuration

Unwinder	Two reels
Brake Control
Decurling equipment

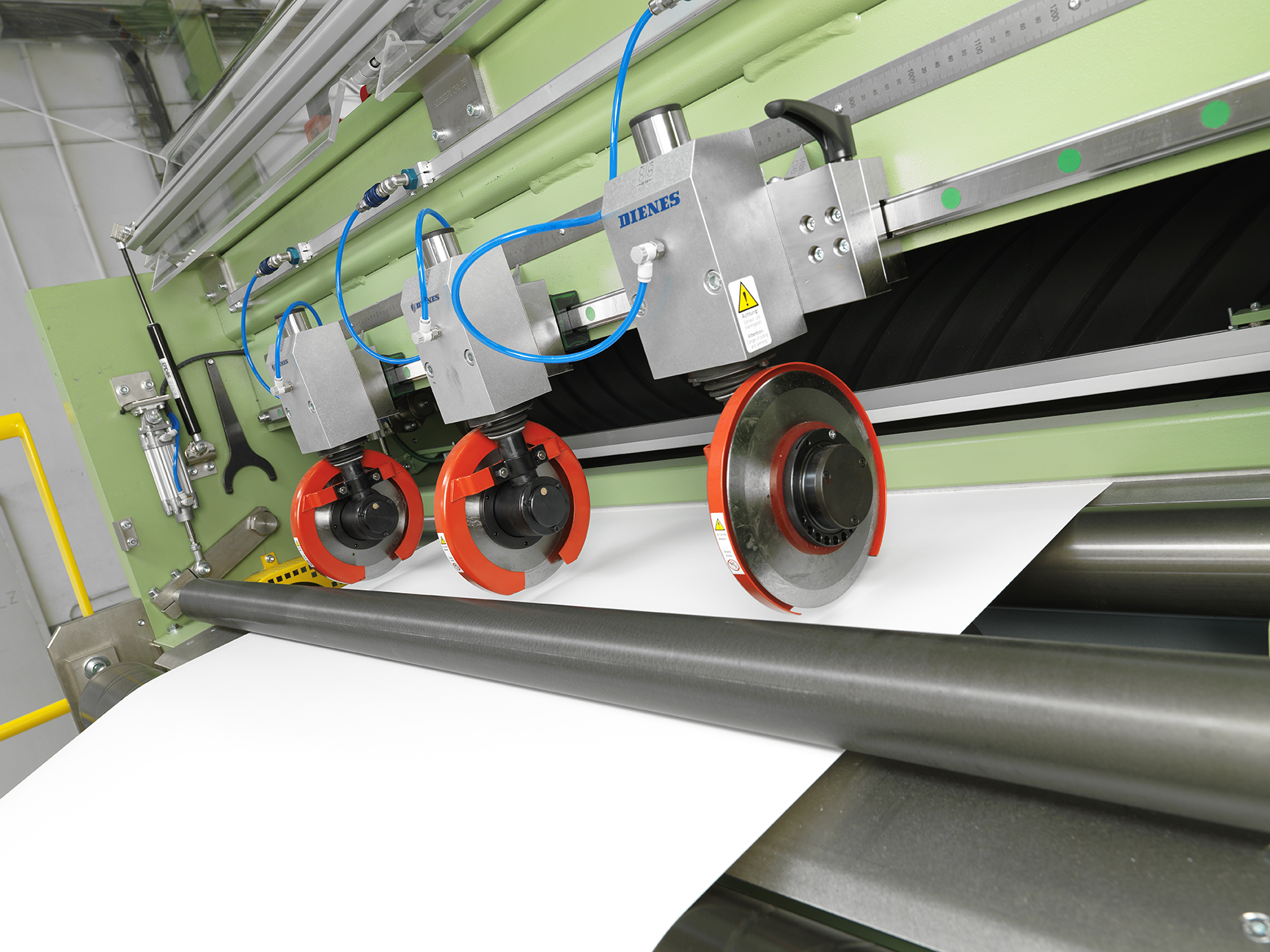

Slitting
Pulling section
Cross-cutting system	Synchro
Reject gate
Overlapping group
Sheet counting
Jam detection system
Equalizing equipment	Frontal stack
Side separators and back-stops
Stacking table
Safety Equipment

General characteristics

Reel dimensions

Max. width	1.700 mm
Min. width	550 mm
Max. diameter	1.850 mm
Min. diameter	500 mm

Format dimensions

Max. width	1.650 mm
Min. width	300 mm
Max. length	1.650 mm
Min. length	400 mm

Stack dimensions

Max. height (incl. Pallet)

1.500 mm

Speed

Max. Speed

300 m/min

- Splice detector
- Web guider
- Trim removal system
- Dust suction
- Tab inserter
- Connection to central computer
A great example of a flexible machine with high technology and a fast return of investment. Its modular system allows the machine to be quickly installed. High accuracy and top quality as per any other model of Pasaban’s portfolio.
